Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression (DSC) adjuster strategically mounted to eliminate interference with aggressive tires at full lock. Performance Elite Series 2.5 shocks provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.

Product Features

Features:

  • 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
  • 7/8" hard chromed steel shafts
  • Vehicle-specific tuning maximizes performance
  • Redundant sealing pack system: main seal, wiper seal, scraper seal

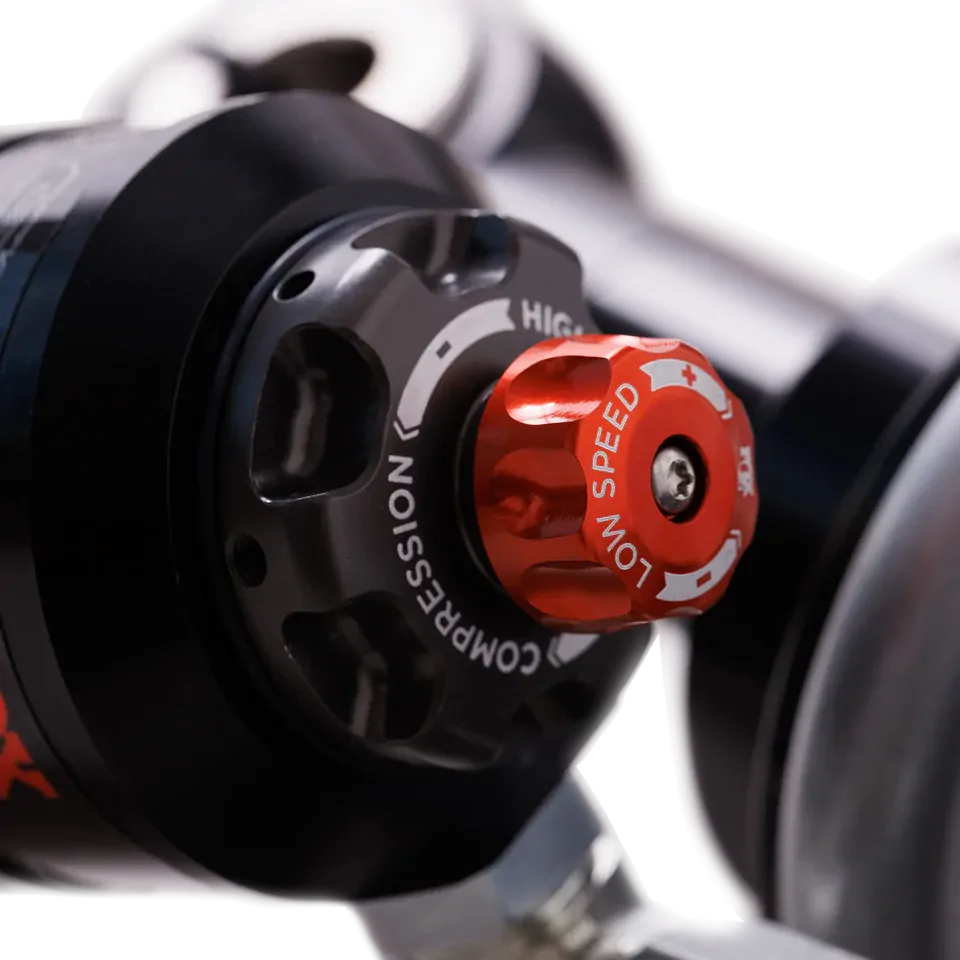

  • External reservoir, with DSC adjuster
Part Number 883-06-235
Series Performance Elite
Travel 5.14
Body 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Extended Length 21.78
Compressed Length 16.64
Top Mount OEM
Bottom Mount Eyelet
Fitment Notes Requires Upper Control Arms (UCA)
