Product Description

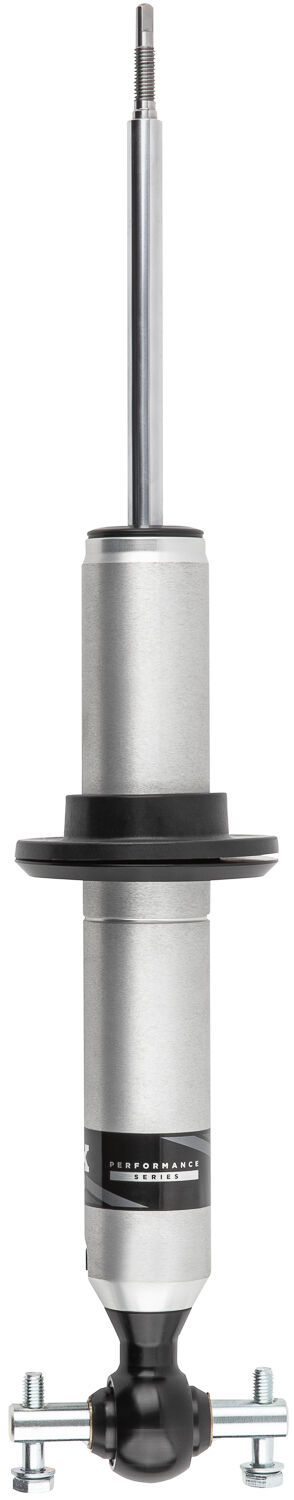

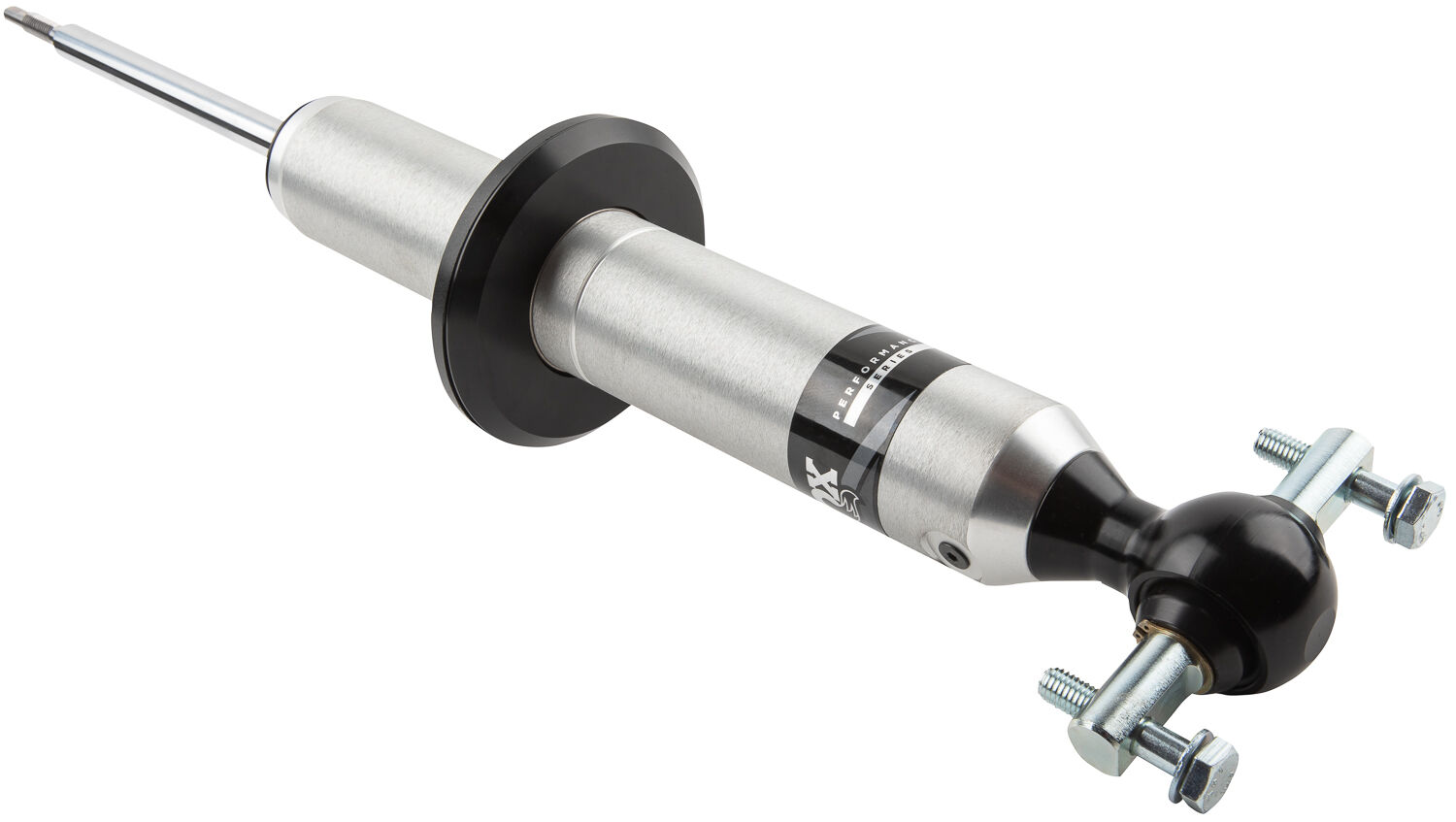

FOX 2.0 Performance Series Snap Ring IFP Coilover | 0–2.5" Lift

Suits Ford F-150 2021–2024 | 4WD | Front

This one’s for the F-150 owners chasing reliable performance, day in and day out. The FOX 2.0 Snap Ring IFP Coilover delivers a proper lift, improved control, and the comfort you'd expect from a premium off-road setup — all at a great value.

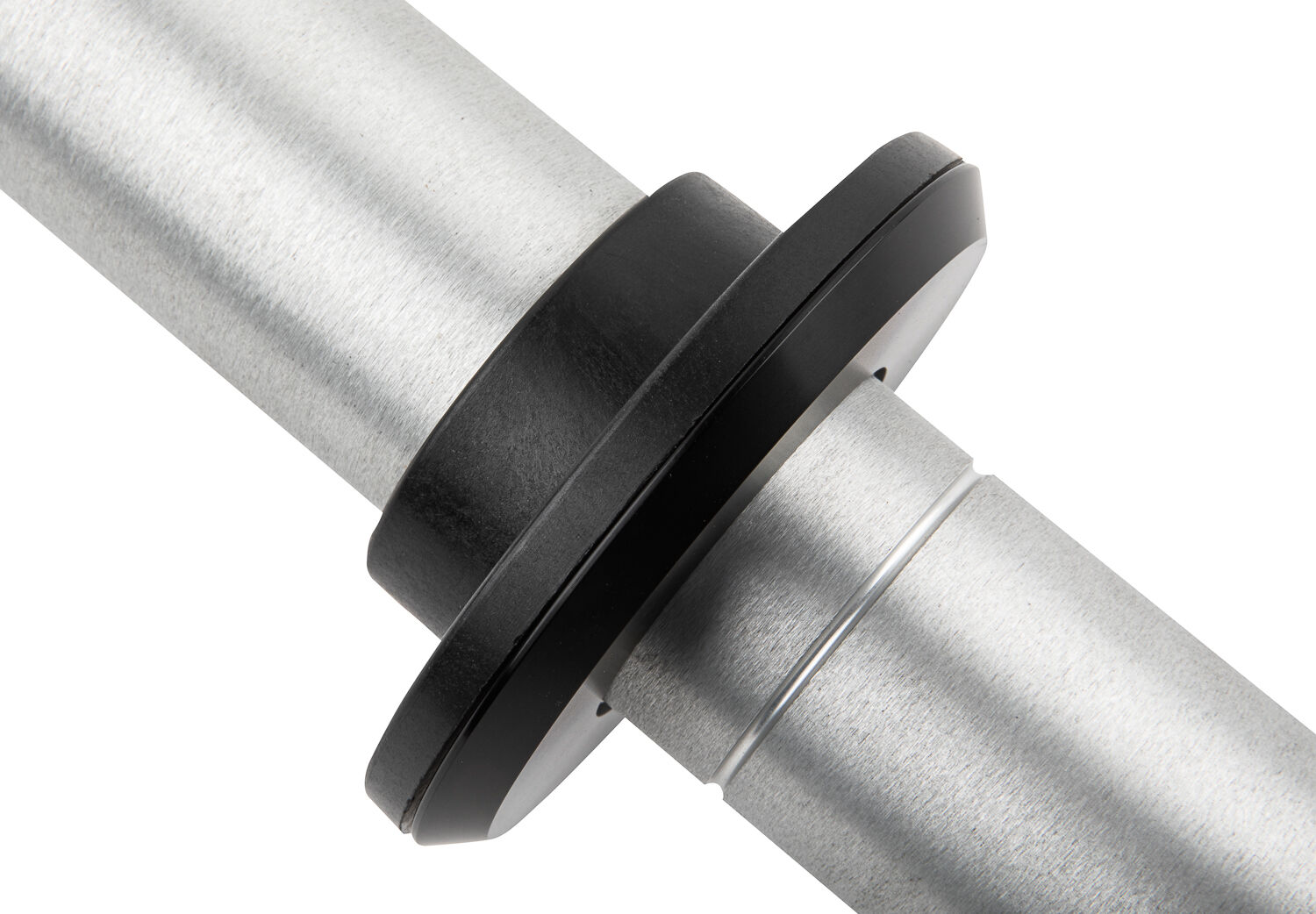

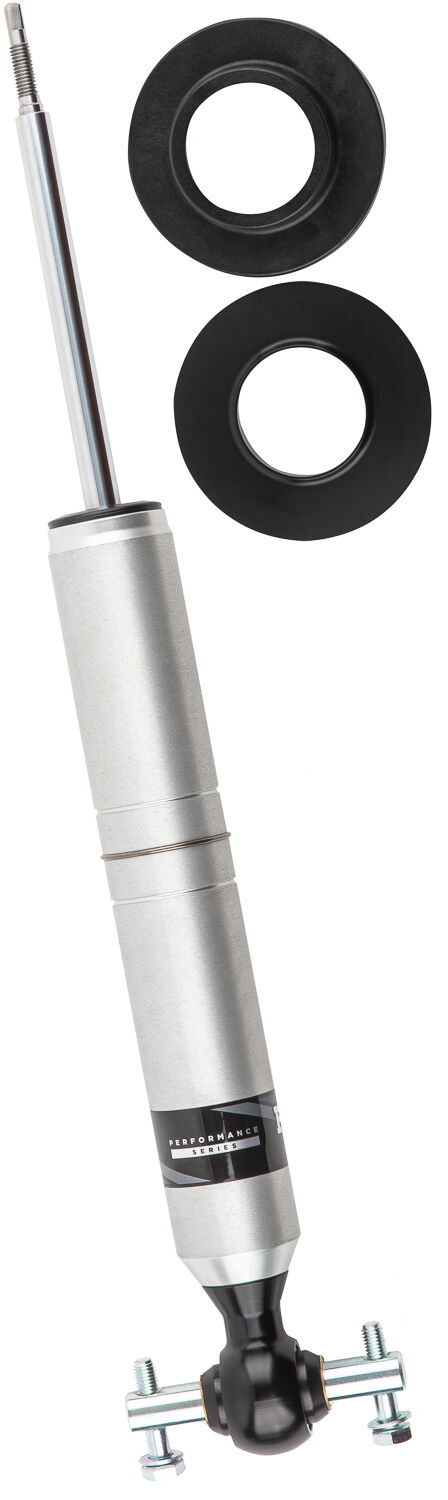

Engineered as a direct bolt-on, this shock reuses your factory spring and mounting gear with a custom-moulded FOX spring seat. Choose your preload height from three positions (0", 1", or 2") and dial in the stance you’re after without stressing out your suspension geometry.

Built to Perform — Built to Last

This IFP (internal floating piston) coilover separates gas and oil inside the shock body to eliminate fade and foaming — something twin-tube factory shocks struggle with under pressure. Whether you’re hauling, wheeling, or just daily driving with confidence, this shock handles the job with control and consistency.

Made from CNC-machined 6061-T6 aluminium, the 2.0" body is built to resist corrosion and shed heat — giving it the durability and cooling performance needed for Aussie touring and towing conditions. And with FOX’s factory-tuned valving, you’ll feel a genuine improvement in how your rig handles rough roads and big loads.

Key Features

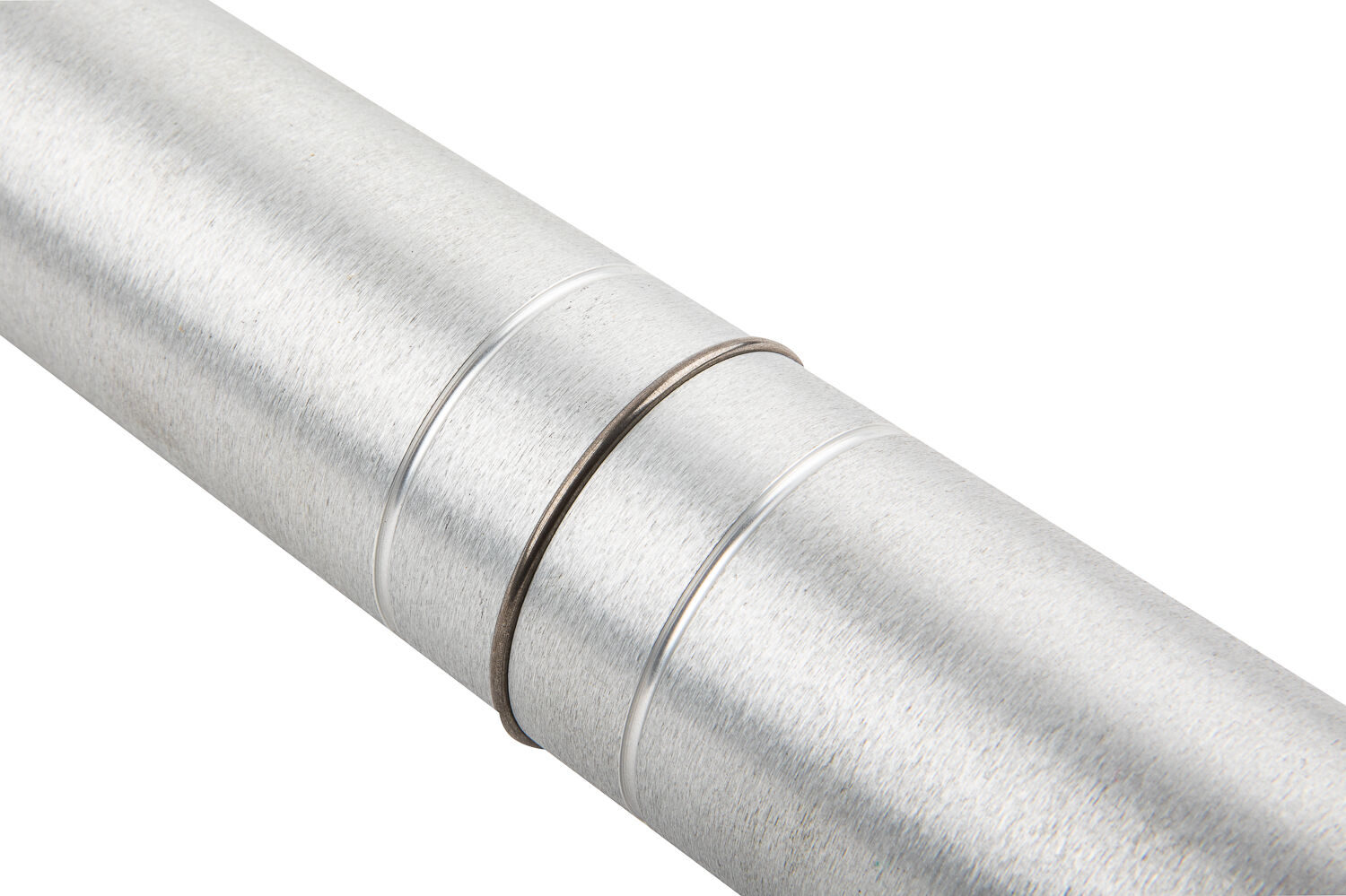

  • 0–2.5" ride height via snap ring preload settings
  • Bolt-on install – reuses factory coil and mounts
  • Internal IFP keeps gas and oil separate to prevent fade
  • Lightweight, rust-resistant aluminium shock body
  • Fully rebuildable and serviceable
  • Designed for comfort, control, and long-haul toughness

Specifications

Specification Detail
Part Number 985-62-013
Series Performance
Travel 5.65 inches (143.5 mm)
Extended Length 22.5 inches (571.5 mm)
Compressed Length 16.85 inches (428 mm)
Body Diameter 2.0 inches (50.8 mm)
Body Construction 6061-T6 impact-extruded and CNC-machined aluminium
Finish Clear-anodised for corrosion resistance
Shaft 5/8" (15.9 mm) chrome-plated, heat-treated alloy steel
Piston High-flow, race-developed design
Valving Vehicle-specific factory tuning
Components CNC-machined 6061-T6 billet aluminium, black anodised
Seals Multi-stage sealing system: main, wiper, and scraper seals
Bearings Heavy-duty spherical bearings
Top Mount Reuses OEM mounting hardware

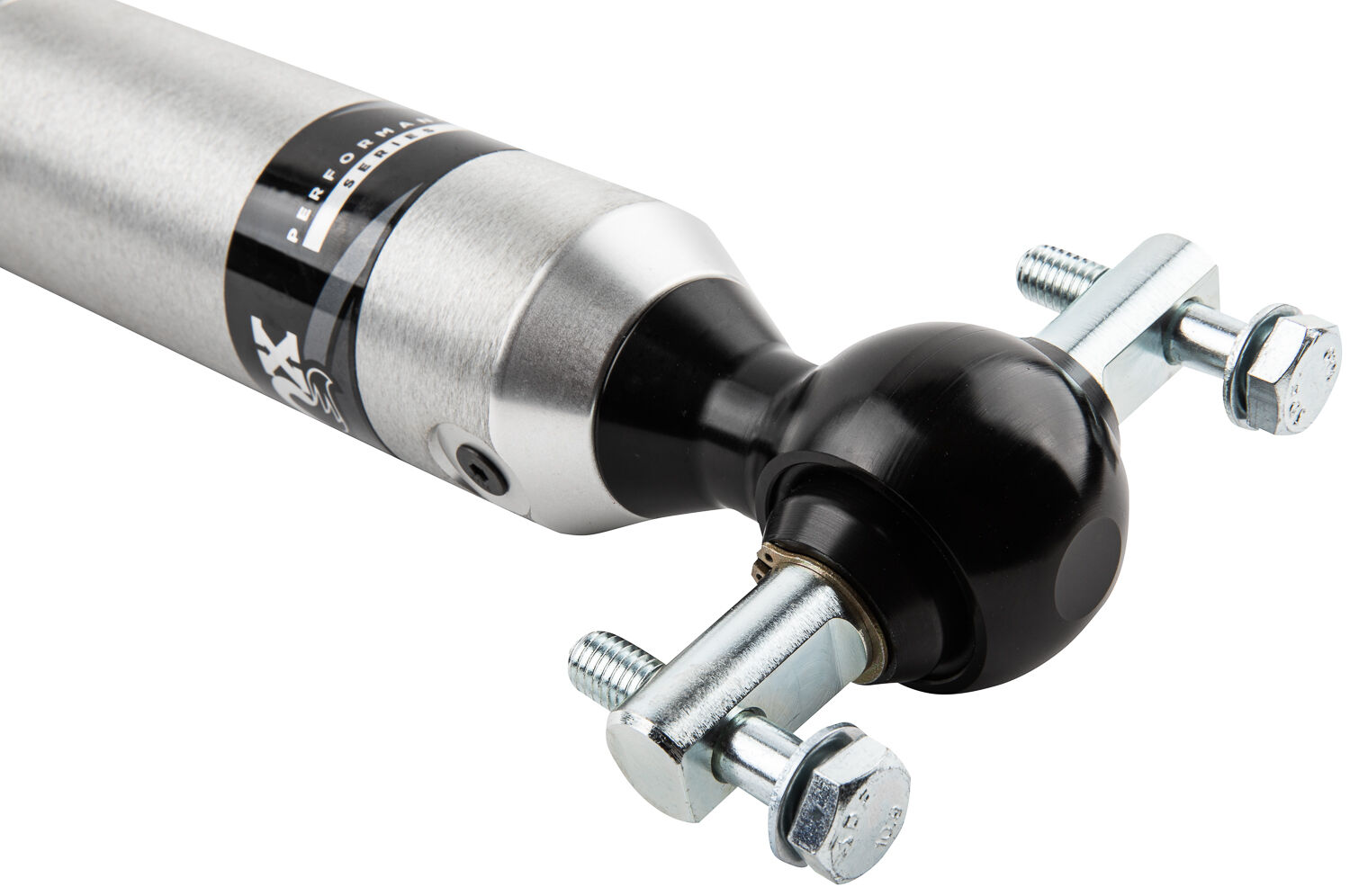

Bottom Mount Bar pin

Fitment

  • Compatible with 2021–2024 Ford F-150 4WD
  • Front position
  • Lift height: 0–2.5"
  • Excludes Tremor variants
  • Does not fit 2012 Toyota Hilux

Product Specifications

SKU 985-62-013
Brand Fox
Product Coilovers
Sold As Each
Front Or Rear Front
Vehicle Ford F150 2021 On 4WD
